#3260196 - 08/06/12 07:31 AM Duke 1.5 crazy mod question for all the tinkerers
CLT Offline
trapper

Registered: 08/28/08
Loc: st. lawrence county ny
Question,I am fooling around with a couple duke 1.5's and got this idea in my head to make it dogless. Don't ask why cause I don't know really.I was modding some other traps and they were laying there.I broke them down to laminate the jaws and got thinking about how cool a dogless 1.5 would be.I know it's been done and was hoping someone could offer some guidance.I removed the shank that holds the pan to the frame so I could move the fulcrum back towards the jaws.I have a box of #2 bridger pans so I grabbed one and cut the pan notch off.I am going to have to move the spring pin back towards the dog post to accommodate the new fulcrum.I figure on using the dog post as a spring stop.It will get cut off leaving enough to function as a stop.I figure on using a piece of flat stock to put a pan hinge on and then welding it to the cross frame to attach the pan to.Anyone got any prior experience with doing this,maybe some pics,I will post a couple pics of what I have done so far if it will help to visualize things.Thanks...
_________________________

Top
#3260215 - 08/06/12 07:50 AM Re: Duke 1.5 crazy mod question for all the tinkerers [Re: CLT]
CLT Offline
trapper

Registered: 08/28/08
Loc: st. lawrence county ny

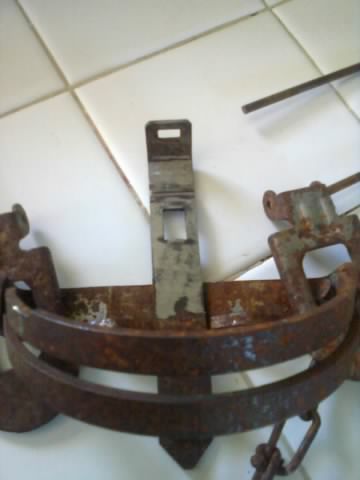

cleaned up and shank that holds pan gone

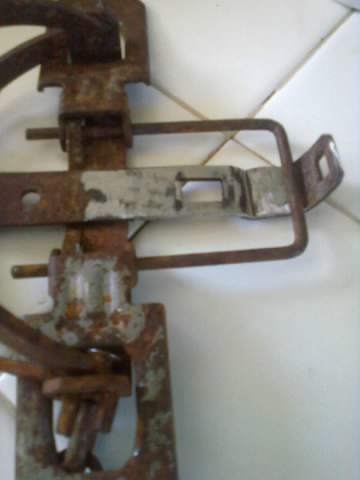

spring pin in new position,tentatively.LOL

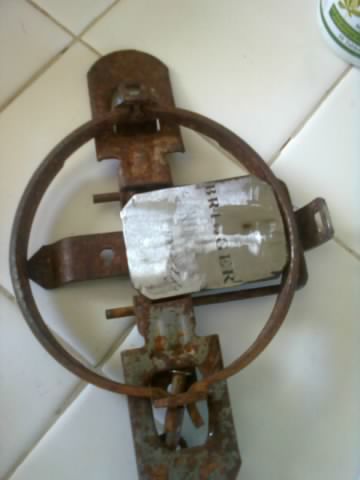

cleaned up pan laying in there
_________________________

Top
#3260452 - 08/06/12 11:08 AM Re: Duke 1.5 crazy mod question for all the tinkerers [Re: CLT]
FOXCATCHER Offline
trapper

Registered: 08/16/07
Loc: Southern Indiana
Could you not just weld a piece of flat stock to the stock pan shank?? That would serve as a jaw catch. Would take less tinkering so probably not what your looking for. smile

I think I have seen a design with a rod welded to the pan shank.

Don
_________________________
With it or on it. A way of life

Top
#3260490 - 08/06/12 11:38 AM Re: Duke 1.5 crazy mod question for all the tinkerers [Re: FOXCATCHER]
CLT Offline
trapper

Registered: 08/28/08
Loc: st. lawrence county ny
Originally Posted By: FOXCATCHER
Could you not just weld a piece of flat stock to the stock pan shank?? That would serve as a jaw catch. Would take less tinkering so probably not what your looking for. smile

I think I have seen a design with a rod welded to the pan shank.

Don

I believe that is where I will end up when I am done.I completely removed the pan shank,I had to to move everything closer to the jaw and still have a decent fulcrum for the pan to fall correctly.A halved piece of round rod welder to the top of the pan and a lip of some type welded to the center of the power jaw is where I think I am heading.I am just trying to get ideas as to the easiest way to go about making it work yet be dependable...

I know someone posted pics of a 1.5 they modded and went dogless on...
_________________________

Top
#3261724 - 08/07/12 08:26 AM Re: Duke 1.5 crazy mod question for all the tinkerers [Re: CLT]
CLT Offline
trapper

Registered: 08/28/08
Loc: st. lawrence county ny
Wow,nobody else,come on I know your all out there.LOL
_________________________

Top
#3261763 - 08/07/12 08:55 AM Re: Duke 1.5 crazy mod question for all the tinkerers [Re: CLT]
Mink Man Offline
trapper

Registered: 01/12/11
Loc: adirondack foothills, NY
looks nifty
_________________________
save a tree, catch a beaver

http://johnsonnuisancetrapping.com/

Top
#3261792 - 08/07/12 09:17 AM Re: Duke 1.5 crazy mod question for all the tinkerers [Re: CLT]
CLT Offline
trapper

Registered: 08/28/08
Loc: st. lawrence county ny
Did a little more this morning,not much progress.It is slow going since I have to make most of the small pieces by hand.I am not a machine shop,LOL,a lot of hand tools and I am having to kind of guess with some things.I will get it done though at some point.I have to make the pan post,get all the clearance issues figured out ect.It is kind of fun though.
_________________________

Top
#3261808 - 08/07/12 09:30 AM Re: Duke 1.5 crazy mod question for all the tinkerers [Re: CLT]
MasonMoM Offline
trapper

Registered: 07/18/12
Loc: Maine, United States of Americ...
Sounds good!

Top
#3261851 - 08/07/12 10:05 AM Re: Duke 1.5 crazy mod question for all the tinkerers [Re: CLT]
Seldom Offline
trapper

Registered: 03/23/07
Loc: Midland, MI
Originally Posted By: CLT
Originally Posted By: FOXCATCHER
Could you not just weld a piece of flat stock to the stock pan shank?? That would serve as a jaw catch. Would take less tinkering so probably not what your looking for. smile

I think I have seen a design with a rod welded to the pan shank.

Don

I believe that is where I will end up when I am done.I completely removed the pan shank,I had to to move everything closer to the jaw and still have a decent fulcrum for the pan to fall correctly.A halved piece of round rod welder to the top of the pan and a lip of some type welded to the center of the power jaw is where I think I am heading.I am just trying to get ideas as to the easiest way to go about making it work yet be dependable...

I know someone posted pics of a 1.5 they modded and went dogless on...

I like to see stuff like this going on.

As I read this I'm trying to envision my #2 dogless Monty's fulcrum point as compared to the fulcrum point you'd establish by using the Duke's existing pan bolt and you extended it with a piece of rod/bar to the jaw as the trigger. Realizing most fabricators see/envision things differently, how did you determine you needed to change/move the fulcrum point. I do a lot of "imagineering" and experimentation usually before things solidify.


Edited by Seldom (08/07/12 10:06 AM)
_________________________
"A few want to know WHY, the majority appear to be satisfied just knowing HOW!"

Top
#3262733 - 08/07/12 08:08 PM Re: Duke 1.5 crazy mod question for all the tinkerers [Re: CLT]
Jason Dufresne Offline
trapper

Registered: 03/10/08
Loc: East Central, Minnesota
Here ya go guys...lots of trial and error in coming up with the final design. Keep in mind that the further behind the jaw you go for your pivot point the more tension it requires to fire the trap; the closer...less. If you are under the jaw directly, it takes tension on the bolt to keep it from firing! When done like this, you can adapt it to any trap and it really turns them into a catching machine...



This is a Bridger 1.65

Bridger #3


A Victor #4 Offset with Huge pan, and a Victor #2 Dbl Ls with a nice coon. My Favorite!

No foot damage, for those that think the #2 is too large of a trap for coon, it's the same jaw spread as a 1 1/2. The Longspring is altogether unappreciated anymore...you owe it to yourself to try them if you haven't! Just don't buy any of those junk Blake and Lambs... wink Send 'em all my way!

Top
#3262752 - 08/07/12 08:15 PM Re: Duke 1.5 crazy mod question for all the tinkerers [Re: CLT]
bic Offline
"Mr. Sensitivity"

Registered: 01/15/08
Loc: Central Pa. 54
That's some pretty slick craftsmanship Jason!
_________________________
In youth, you are too young to know what you don't know..

Top
#3263297 - 08/08/12 07:01 AM Re: Duke 1.5 crazy mod question for all the tinkerers [Re: Jason Dufresne]
Ryan NC Offline
trapper

Registered: 02/04/09
Loc: Morganton NC
Originally Posted By: Jason Dufresne
The Longspring is altogether unappreciated anymore...you owe it to yourself to try them if you haven't!


Can't add a thing on dogless mods as I've never touched a dogless let alone modified one but this statement is one of the best I've seen this summer. I would say Double longsprings myself but there is a reason they are still around and a reason people still use them!
_________________________
Just a Dang Mountain Moron who says it's about time to get ready for fur season! smile

Ya can't fix stupid, not even with duct tape!

Top
#3263493 - 08/08/12 09:46 AM Re: Duke 1.5 crazy mod question for all the tinkerers [Re: CLT]
CLT Offline
trapper

Registered: 08/28/08
Loc: st. lawrence county ny
Thanks for all the pics Jason,I can honestly say mine will not look anything like those!I actually ended up putting the pan on what was previously the loose jaw side.I wish I would have logged on this morning when I got home from work and looked at this before I spent the last two hours outside tinkering!LOL I have learned I need better tools to do this type of stuff.

Seldom,I just couldn't see it working right if I used the existing fulcrum unless I just used an extra long trigger,suppose I could have done that,just didn't seem right to me though.I wanted a short trigger off the pan and to do that I had to move stuff.

I will post a pic or two when I get done,gonna be embarrassing now with Jason's pics her now! whistle
_________________________

Top
#3263567 - 08/08/12 10:48 AM Re: Duke 1.5 crazy mod question for all the tinkerers [Re: CLT]
ztbowtech Offline
trapper

Registered: 10/04/10
Loc: Chautauqua county, ny
i would use #11 longs over 1.5 coils any day for rat-coon. love how they bed and hold on and don't let go of anything. to bad i have very few of them or i would sell most of my 1.5s besides my old pinch pan victors. love those for blind rat and mink sets.
_________________________
2013 summer damage control
Beaver: 2
Rats: 0
Coon: 1
Skunk: 0

HUNTING
carp: 52
chucks: 31
pigeons: 42 (1 band)
geese. 137 ( 14 bands)

Top
#3264464 - 08/08/12 09:33 PM Re: Duke 1.5 crazy mod question for all the tinkerers [Re: CLT]
Jason Dufresne Offline
trapper

Registered: 03/10/08
Loc: East Central, Minnesota
Yeah I meant Double Longsprings as well Ryan, I turn the sloped jaw single longsprings into a single wire levered rat trap lol! And the square or even jawed singles into a double.

Thanks Bic much appreciated after seeing some of your handywork bud!

And CLT it's better to have tried and failed than to never try at all, I applaud your efforts and thanks for sharing! I've gotten away from posting much, or taking pictures of my work anymore, but I do enjoy a great post on sharing creations. Great job, I'm sure you'll tweak it into shape!

Top
#3264485 - 08/08/12 09:47 PM Re: Duke 1.5 crazy mod question for all the tinkerers [Re: CLT]
RiversNorth13 Offline
trapper

Registered: 11/04/10
Loc: Gitche Gumee Wisconsin
Jason, your the man !

Love seeing you work of Art!
_________________________


Simplify your methods to the point of perfection.

Become fast,efficient & effective.

The real "SECRET" to successful trapping.

KEEP IT SIMPLE!

.

Top
#3264492 - 08/08/12 09:51 PM Re: Duke 1.5 crazy mod question for all the tinkerers [Re: CLT]
yoteguts Offline
trapper

Registered: 07/29/08
Loc: central Illinois
Awesome as always Jason.
_________________________
I'm itchin' to see a coyote twitchin'.

More trappin' and less yappin'.



Member FTA & USSA.






Top
#3264607 - 08/08/12 11:16 PM Re: Duke 1.5 crazy mod question for all the tinkerers [Re: CLT]
Drifter Offline



Registered: 12/22/06
Loc: Stronghurst , IL
Nice job there Jason. That will give folks something to shoot for.

Drifter
_________________________
Ayn Rand: "We are fast approaching the stage of the ultimate inversion: the stage where the government is free to do anything it pleases, while the citizens may act only by permission; which is the stage of the darkest periods of human history, the stage of rule by brute force."








Life member NTA , member Illinois and Ohio assoc .

Top
#3264614 - 08/08/12 11:23 PM Re: Duke 1.5 crazy mod question for all the tinkerers [Re: CLT]
Jason Dufresne Offline
trapper

Registered: 03/10/08
Loc: East Central, Minnesota
Thanks guys for the kind words! We are lucky as trappers to have so many quality traps to choose from off the shelf, but it's always fun to see what the next best "mouse trap" might be...

-Jason

Top
#3264750 - 08/09/12 06:29 AM Re: Duke 1.5 crazy mod question for all the tinkerers [Re: CLT]
CLT Offline
trapper

Registered: 08/28/08
Loc: st. lawrence county ny
After looking at Jason's pictures I have decided to change some things!LOL
I gotta go to the hardware store to get a couple things today.
